Gator Teeth Steel

Steel Family.jpg

Steel Gator Teeth

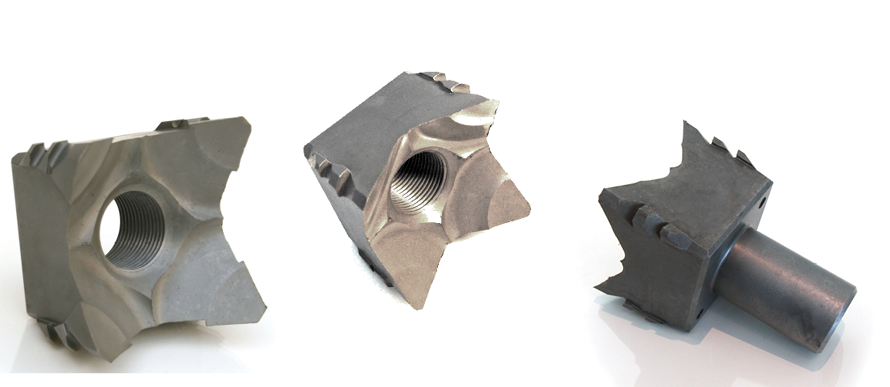

Original G Series and new X Series

The new standard in saw teeth.

The new super aggressive X25NS is a 2 1⁄2” Gator Tooth with a new patent pending shape that cuts even faster & lasts even longer. The front cutting tips as well as the 2nd & 3rd cutting tips are even larger than on the original G23NS Gator Tooth.

The X25NS is bigger to match the new thicker Tigercat discs. That being said, the X25NS gives even more life when mounted on the original thinner discs. The wide 2 1⁄2” kerf X25NS is interchangeable with the G23NS and fits on all Tigercat discs.

This extra steel is just where you want it – at the corners – keeps your teeth sharp longer and cutting faster.

Installation Instructions

G23NS GC23NS.pdf
G24K GC24K.pdf
GC20S G20S.pdf

Proven Results

Field testing has shown that Gator Teeth® last significantly longer and cut significantly better than competitor teeth. The secret of their long life is due to 8 extra cutting tips for a total of 12 tips per tooth sharing the work of cutting, thereby keeping their cutting edges sharp longer.

Operators have also noticed Gator Teeth® “don’t drag the saw down as much and stay sharp longer”, resulting in better cutting efficiency for a longer period of time. This better cutting will help loggers’ bottom line with increased productivity and fuel savings.

Gator Teeth® are also impact resistant. Operators have commented that the second cutting tips are not damaged after hitting rock leaving the teeth “still cutting smooth” and avoiding maintenance & downtime.

Gator Teeth® are designed to fit Tigercat, Waratah, Timberjack, John Deere, and Koehring saws.

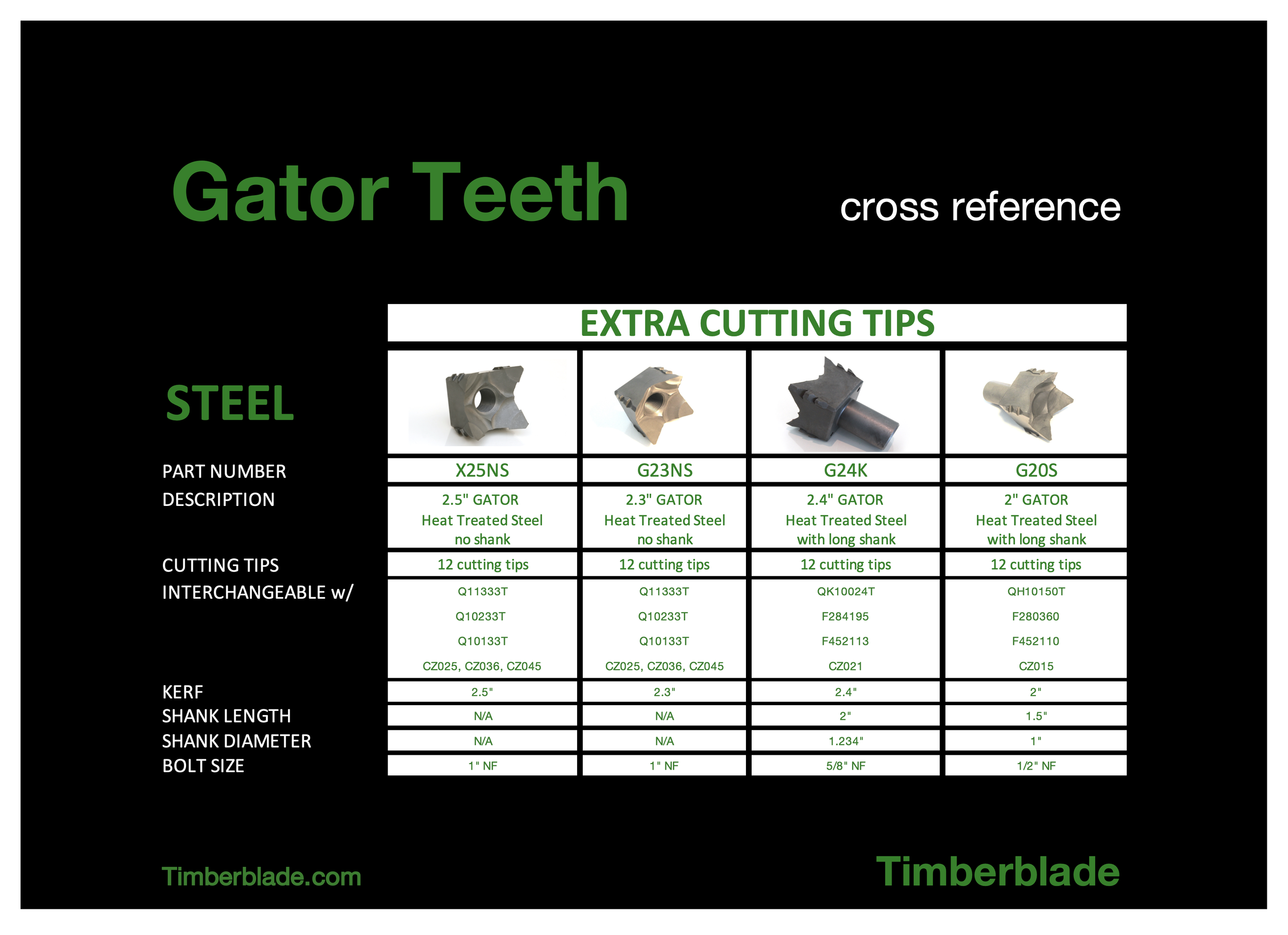

X-reference steel.jpg
